＊We are specialized in OEM & ODM＊

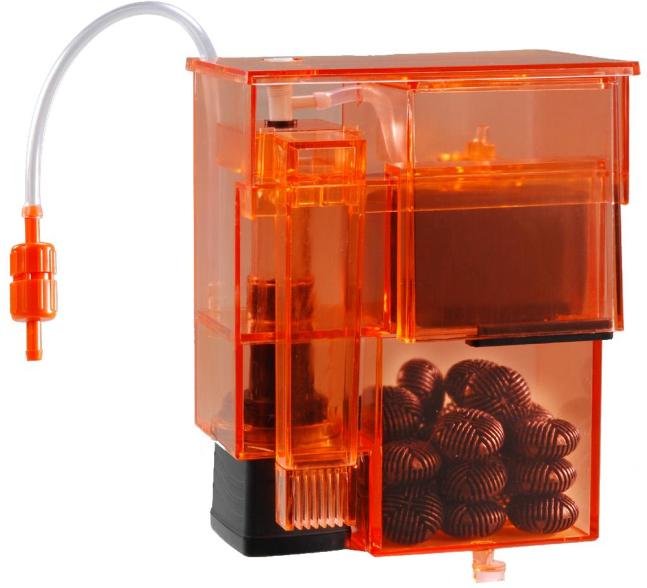

Code No.: SL017
Standards: AC110~230V/ 50~60HZ, any kind of plugs
Dimension: 142mm x 96mm x 196mm
Power: 4.5W
Maximum of flow: 300 L/H
Material: PS
Color: Safe Color
Suitable for: 30~60cm aquarium
Country of Origin: Taiwan
Brand: Sinn Long
Advantages: Self- R&D, self-manufacture and patent product.

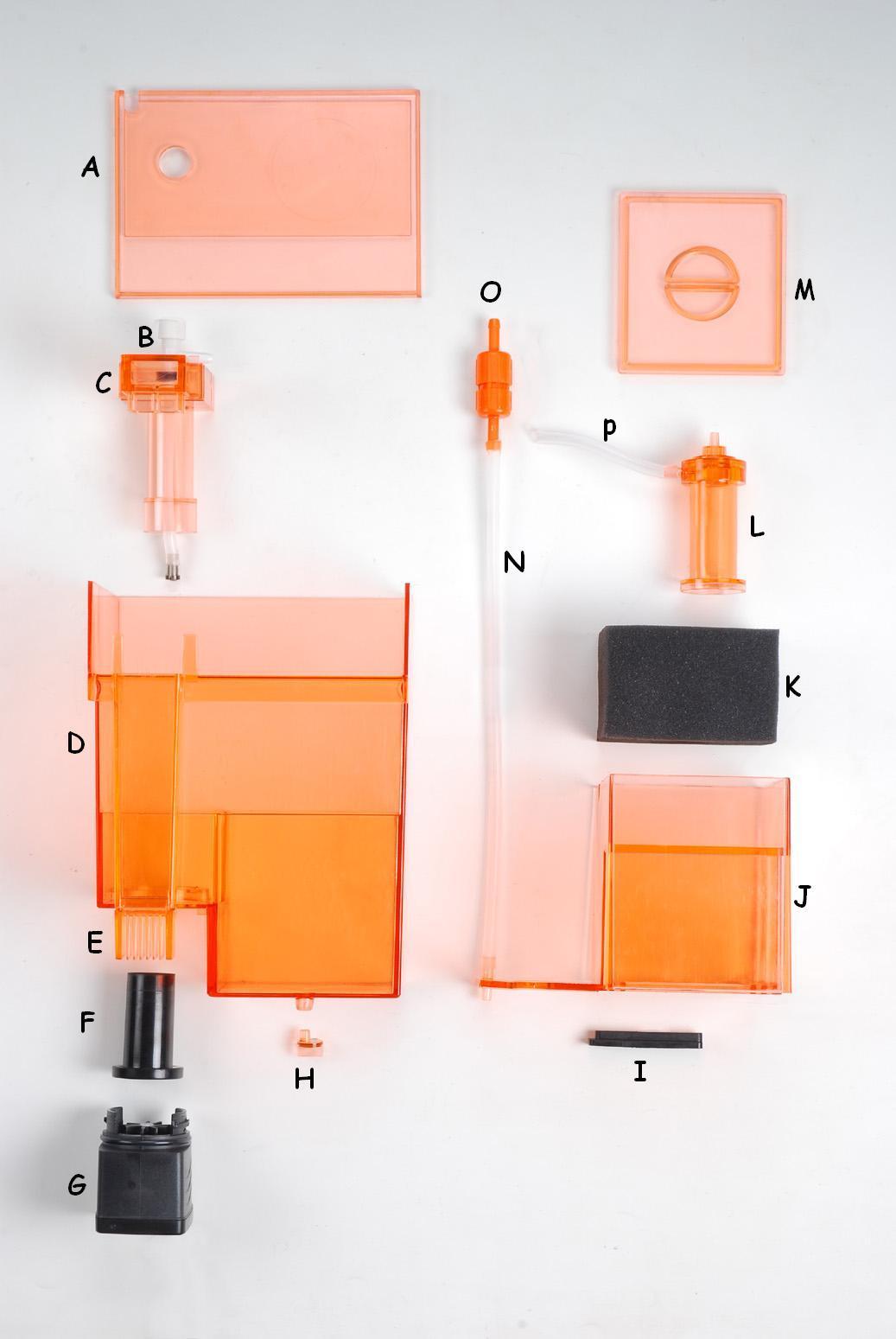

Part List:

1. Cover of Body
2. Control valve of air inlet
3. Water Inlet
4. Body
5. Meshed Fingerling
6. Base of Water Inlet (Connect with Pump)
7. Pump (300L/H)
8. Body Fixed Bottom
9. Rubber Flake of Adjusting the Water Direction
10. Box of Bio-sponge
11. Bio-sponge
12. Co2 Recycler
13. Cover of Sponge Tank
14. Co2 Inlet
15. Co2 Check Valve
16. Conduit of Co2 Recycle

Functions:

1. The vanes of motor are made of rubber, which could smash the carbon dioxide and could dissolve it in the water completely.
2. Separate the carbon dioxide which is not dissolved in the water, and use the pull of motor to recycle the it to reiterate the solution.

How to use:

1. First, full the skimmer up with water. Then insert the plug into the socket, the pump and the rubber vanes will start to move.
2. The water inlet will start pump water. After the opertion regularly, open the Co2 steel cylinder. Paying attention to the Co2 telltale to the properly entered quantity of the air, you will see the carbon dioxide suck into the motor and discharge by the rubber vanes. The first smash is finished.
3. The blended Co2 will penetrate the black Biocotton which would separate the un-smashed Co2 to the Co2 Recycler.
4. To recycle the un-smashed Co2 to the Water Inlet by the pull of motor, and re-smash the Co2 by the rubber vanes. Reiterate this step that could recycle and re-smash the Co2 to make it flow into the aquarium, so that the water plants could absorb the Co2 promptly. It would recycle the Co2 completely.

Features:

1. Patented design by SINN LONG from Taiwan.
2. The closeness type system force type filtration, it can separate air completely.
3. The sponge can separate Co2 that would not melt into water,for various filter material and according to personal demand.
4. Conduit of Co2 recycles to reiterate the solution.
5. To help the water plants to absorb the Co2 promptly, recycling the Co2 completely.
6. It can adjust out of the water direction, more beautiful.

Maintenance:

Please use the clean wiper with the warm water to wipe the appearance of body lightly, do not use the medicament to wipe it, which would cause unnecessary corrosion to make the product tarnish. Please use the water, the temperature as the aquarium used, to wash the filtration sponges. If it can't be used anymore, please abandon it with the statute of plastic in your country, do not abandon it at will. The sponges that we used are made up with the materials of environmental protection, it can abandon directly. These are our duties to do the environmental protection, please follow the above thoroughly.

Warning:

1. Please consult the standards of voltage that marked upon the electric appliances carefully, whether they conform to your country's voltage or not.
2. Please don't disassemble the electric appliances in order to prevent to get shocked.
3. Please don't alter the voltage by oneself or do any refit to the electric appliances.
4. The socket must be higher than the products to prevent the shock or electrical fire, if the water following the cord to the power socket
5. Be sure to remove the power cord when you clean up the appliance or change the sponge.
6. Hand is wet can't touch the plug of product.
7. Product using a long time has occur decay, please change new product immediately.
8. Using the product must according to the usage lest using not appropriate occur to get an electric shock of danger .
