＊We are specialized in OEM ＆ ODM＊

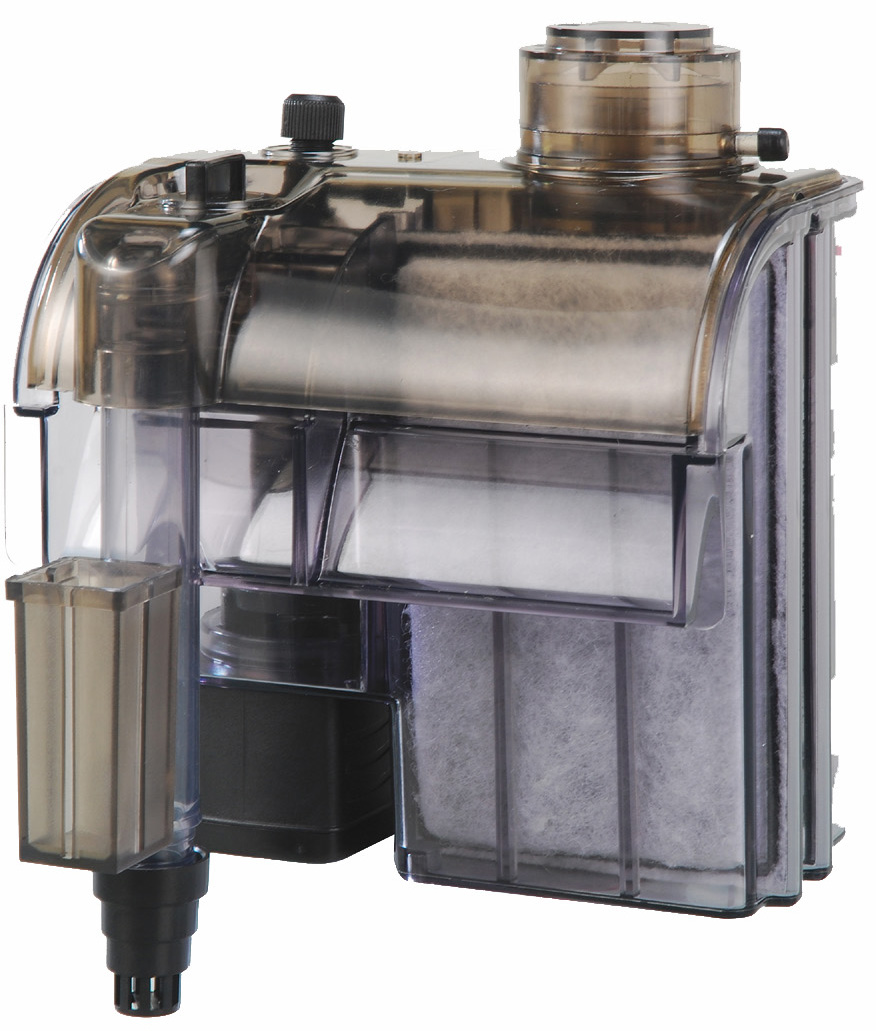

Code No.: SL002
Standards: AC110~230V/ 50~60HZ, any kind of plugs
Dimension: 137mm x 93mm x 200mm
Power: 4.5W
Maximum of flow: 300 L/H
Material: PS
Color: Safe color
Suitable for: 30~60cm
Country of origin: Taiwan
Brand: Sinn Long
Advantages: Self- R&D, self-manufacture and patent product.
Parts List:
-
Control Valve of Air Flow
When the first using, please make sure turn off the control valve of air flow. After the motor works, adjusting the air flow that you want with the proper water level. (More air, the lower water level is; less air, the higher water level is.)
-
Control Valve of Water Flow
More Water, the speed of skimming will be faster and the sewage will be paler. Less Water, the speed of skimming will be slower and the sewage will be darker.
-
Water Inlet
-
Collection Cup of Dirt
-
Upward Board
-
Biochemical Sponge
-
Board of Fixed Biochemical Sponge
-
Body
-
Base of Conduit (Connect with Pump)
-
Pump (300L/H)
-
Fixed Bottom of Body
-
Meshed Fingerling
-
Collection Cup of Protein
-
Cover of Body
-
Connector of External Collection Cup (with Rubber Cover)
-
Top Cover of Collection Cup
-
Tube
-
Filtration Cotton
-
Bio-sponge
How to use:
Before using:
-
Please fill up the filter sink with water cover the pump.
-
Please turn off the air control valve (A).
-
Make sure the water level must be above 1/2 of Water surface skim collection cup(D).
Start:
-
Put the plug in the socket and switch on the skimmer. (Note: It needs to be U font of power cord to prevent the water following the cord to the power socket.)
-
After the motor starts, turn on the flow control valve (B) 45 degrees and adjust the water to the best level (the red line is from back of the filter.)
-
Turn on the air control valve (A), and it will produce bubbles. The water lever will be lower, and than turn on the flow control valve (B) to fill the water. Adjust the water level to the red line again.
-
You can repeat (2) and (3) to adjust the air and water.
-
If the filter could not operate normally, please repeat the movement above.
Using:
-
After operating normally, please check whether the water level of filter sink and aquarium is appropriated and whether the bubble is enough, and than it could filter the protein. If the water lever is higher than standard, the skimmer could not produce the bubble.
-
You can adjust the speed of rate to remove protein depend on your own request. More water and wind can collect the protein faster. If you want to lower the rate, please lower the flow of water and wind.
Notice:
-
Please check the water lever is at the right position, and when the water flows into aquarium, it could not produce bubbles. If you see there are many bubbles or the water lever is unusual high, it is the time to exchange the filtration cotton (F)(R)(S).
-
When the collected cup(M) was filled, please clean and set it back. Make a regular clean of collection cup top (N)(P) .If there is crystalline salt, please clean it by water.
-
At the normal using, the result will cause of the water quality and the salinity. After 2-7days you can see the good result.
Maintenance:
Please use the clean wiper with the warm water to wipe the appearance of body lightly, do not use the medicament to wipe it, which would cause unnecessary corrosion to make the product tarnish. Please use the water, the temperature as the aquarium used, to wash the filtration sponges. If it can't be used anymore, please abandon it with the statute of plastic in your country, do not abandon it at will. The sponges that we used are made up with the materials of environmental protection, it can abandon directly. These are our duties to do the environmental protection, please follow the above thoroughly.
Warning:
-
Please check the standard of voltage that marked upon the electric appliances carefully, whether they conform to your country's voltage or not.
-
Please don't disassemble the electric appliances in order to prevent to get shocked.
-
Please don't alter the voltage by oneself or do any refit of the electric appliances.
-
The socket must be higher than the products to prevent the shock or electrical fire, if the water following the cord to the power socket.
-
Be sure to remove the power cord when you clean up the appliance or change the sponge.
-
Using the product must according to the usage lest using not appropriate occur to get an electric shock of danger.
-
The above item must be strictly observed.
|
