＊We are specialized in OEM ＆ ODM＊

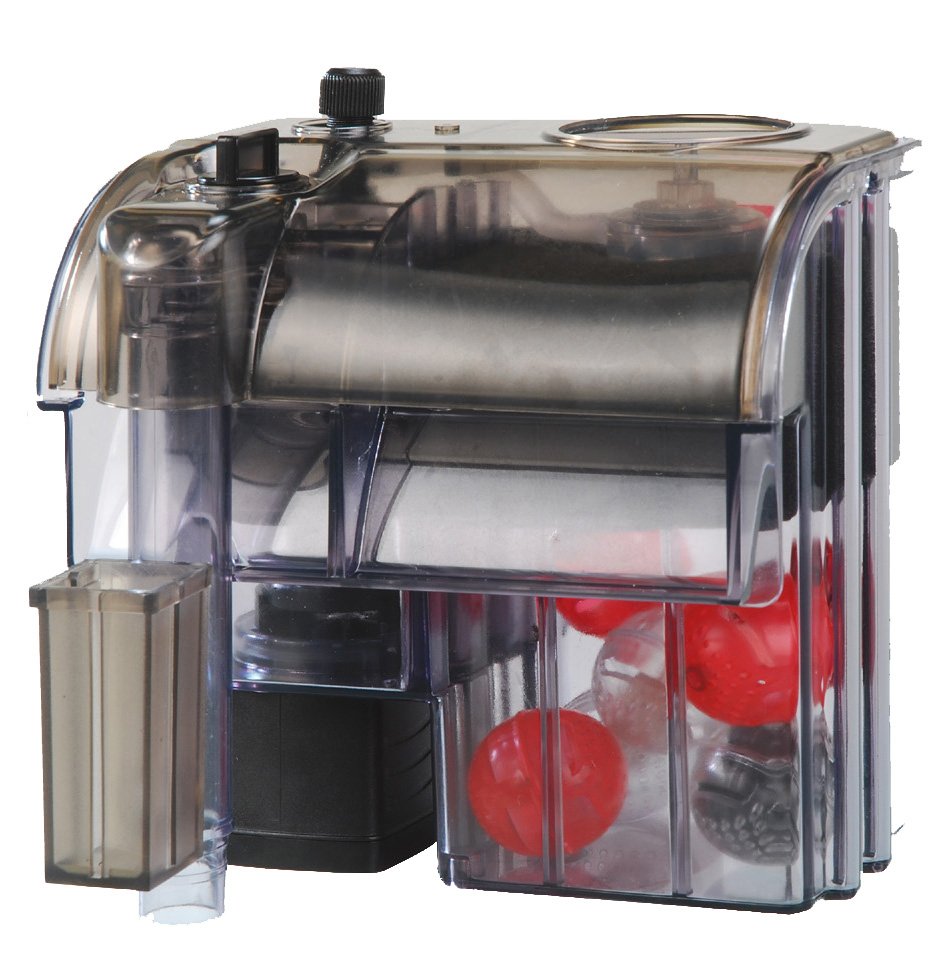

Code No.: SL001
Standards: AC110~230V/ 50~60HZ, any kind of plugs
Dimension: 137mm x 93mm x 200mm
Watt: 4.5W
Output: 300 L/H
Material: PS
Color: Safe Color
Suitable for: 30~60cm
Country of origin: Taiwan
Brand: Sinn Long
Advantages: Self- R&D, self-manufacture and patent product.
Part List:
- Cover of Body
- Control Valve of Water Flow
- Water Inlet
- Collection Cup of Dirt
- Body
- Base of Conduit (Connect with Pump)
- Pump (300L/H)
- Bio-sponge
- Cover of Co2 Recycler
- Co2 Recycler
- Control Valve of Air Flow
- Siphon
- Check Valve
Features:
- Water plants filter, specialized in Co2 Smashing & Recycling.
- Patented design by SINN LONG from Taiwan.
- The sponge can separate Co2 and melt it into water completely.
- Conduit of recycling (J) could repeat the recycling solution of un-smashed Co2.
- To help the water plants to absorb the Co2 promptly, recycling the Co2 completely.
How to use:
-
To check whether all parts are at the right positions or not.
-
Take out the cover of recycler (I) and full the skimmer up with water to the height of filtration sponge. (Note: the gap and the air vent should be face to face.)
-
After plug in the power, the motor would start to operate, and the rubber vanes also start to operate. The filtration tank is vacuumed at the same time.
-
To connect the Co2:
The Co2 collection (J) is connected with siphon ← Check valve (← is the direction of check valve ) ← Siphon ← The steel cylinder of Co2.
-
After the regular operation, open the steel cylinder of Co2. Paying attention to the Co2 telltale to the properly quantity of the air flow, you will see the carbon dioxide is sucked into the motor and discharged by the rubber vanes. The first smash is finished.The Co2 of complete can through black percolation cotton to get into the aquarium, separate completely of the Co2 don’t smashed, collect in the recall box”J”,flow back pump by recall cord,let the rubber blade smash again CO2,repeat it：smash → absorb → smash again → absorb again, the water grass that can easily absorbed in the aquarium, Co2 can be recycle ,don’t waste.
-
Just regular the control valve slightly, do not make the water flow too slow to let the water level too low, or do not make it too fast to let water level too high, it would cause the leaking.
Maintenance:
Please use the clean wiper with the warm water to wipe the appearance of body lightly, do not use the medicament to wipe it, which would cause unnecessary corrosion to make the product tarnish. Please use the water, the temperature as the aquarium used, to wash the filtration sponges. If it can't be used anymore, please abandon it with the statute of plastic in your country, do not abandon it at will. The sponges that we used are made up with the materials of environmental protection, it can abandon directly. These are our duties to do the environmental protection, please follow the above thoroughly.
Warning:
- Please check the standard of voltage that marked upon the electric appliances carefully, whether they conform to your country's voltage or not.
- Please don't disassemble the electric appliances in order to prevent to get shocked.
- Please don't alter the voltage by oneself or do any refit of the electric appliances.
- The socket must be higher than the products to prevent the shock or electrical fire, if the water following the cord to the power socket.
- Be sure to remove the power cord when you clean up the appliance or change the sponge.
- Using the product must according to the usage lest using not appropriate occur to get an electric shock of danger.
- The above item must be strictly observed.
|
